Why MAPbI3 Stands Out

Imagine a material that can be dissolved in a liquid, painted onto a surface, and then dried into a film capable of converting sunlight into electricity with remarkable efficiency. That's the essential promise of methylammonium lead iodide, or MAPbI3 — a compound that has genuinely shaken up the solar energy world since researchers first tested it in photovoltaic devices back in 2009. In just over a decade, solar cells built from this material rocketed from a modest 3.8% efficiency to certified laboratory records exceeding 25%. For context, silicon solar cells took roughly 40 years to reach similar milestones. That kind of acceleration is almost unheard of in materials science, and it has the research community buzzing.

MAPbI3 belongs to a class of materials called perovskites — named after a Russian mineralogist and defined by a specific crystal architecture where lead atoms sit inside cages of iodine atoms, while organic "methylammonium" molecules nestle in the spaces between. This elegant structure turns out to be extraordinarily good at absorbing photons and converting their energy into moving electrical charges.

Key Properties Explained

So what makes MAPbI3 so special at the atomic level? Several properties work together in a kind of perfect storm for solar energy conversion.

First, there's the bandgap — essentially the minimum energy a photon needs to kick an electron loose and generate electricity. Too small a bandgap, and you absorb lots of light but waste much of its energy as heat. Too large, and you capture only a sliver of the solar spectrum. MAPbI3 has an experimentally measured bandgap of approximately 1.50–1.60 electronvolts (eV), which sits tantalizingly close to the theoretical sweet spot for single-junction solar cells. Physicists call this sweet spot the Shockley-Queisser limit — a fundamental calculation showing that around 1.34 eV is theoretically optimal, with a maximum possible efficiency near 33.7% for any single-material solar cell.

Beyond the bandgap, MAPbI3 boasts a high absorption coefficient (meaning a very thin layer absorbs a great deal of light), impressively long carrier diffusion lengths (meaning the freed electrons and holes can travel far without recombining and losing their energy), and a surprising defect tolerance — imperfections in the crystal that would cripple a silicon device cause comparatively little damage here.

What the Analysis Reveals

A recent computational study put these properties under rigorous scrutiny by running 200 simulated device configurations, systematically varying the bandgap to map out exactly where performance peaks. The simulated device stacked layers in a standard architecture: a glass electrode, a titanium dioxide electron-transport layer, the MAPbI3 absorber, a hole-transport material called Spiro-OMeTAD, and a gold contact.

The results were illuminating. The highest power conversion efficiency (PCE) — the percentage of incoming solar energy converted to electricity — of 14.51% was achieved at a bandgap of precisely 1.56 eV, matching almost exactly the real-world bandgap of stoichiometric MAPbI3. Crucially, the top three configurations clustered tightly between 14.34% and 14.51% across bandgaps of 1.55 to 1.59 eV, revealing a performance plateau. This is good news for manufacturers: small variations in the material during processing won't dramatically tank efficiency. Even a configuration with a wider bandgap of 1.68 eV still delivered a competitive 14.09%, hinting at usefulness in tandem solar cells — devices that stack multiple absorber layers to capture different parts of the solar spectrum.

Interestingly, two configurations sharing the same 1.55 eV bandgap produced efficiencies of 14.34% and 13.78% respectively, underscoring that bandgap alone doesn't tell the whole story. Defect density, charge carrier mobility, and interface quality all leave significant fingerprints on the final result.

Comparing to Similar Materials

How does MAPbI3 stack up against the competition? Silicon, the reigning champion of commercial solar, has a bandgap of about 1.1 eV — slightly below the Shockley-Queisser optimum but backed by decades of manufacturing refinement and efficiencies pushing 26% in the lab. Cadmium telluride (CdTe) sits closer to the ideal with a ~1.45 eV bandgap and has achieved over 22% efficiency, but relies on rarer elements. CIGS (copper indium gallium selenide) offers a tunable bandgap and strong performance but involves complex, expensive fabrication. MAPbI3 competes by offering a near-ideal bandgap combined with potentially low-cost, solution-based manufacturing — essentially printing solar cells rather than growing and slicing silicon crystals.

Challenges Ahead

The simulated peak efficiency of 14.51% sits well below the >25% records achieved in actual laboratories, and the researchers are transparent about why: the model used conservative, realistic parameters including unavoidable energy losses from non-radiative recombination — processes where electrons and holes lose their energy as heat rather than electrical current rather than contributing to useful power. This gap between simulation and experiment actually points toward opportunity: better defect passivation, smarter interface engineering, and improved transport layers could close it considerably.

More pressing, however, is MAPbI3's notorious stability problem. The methylammonium organic cation is sensitive to heat, humidity, light, and oxygen, causing the material to degrade over time. Commercial solar panels must survive 25+ years outdoors — a bar that current MAPbI3 devices don't yet consistently clear. Ion migration within the crystal lattice also creates performance drift under operation. These are real hurdles that no amount of elegant bandgap optimization can paper over.

Why This Matters

The significance of this kind of computational mapping work extends far beyond any single efficiency number. By establishing that MAPbI3's natural bandgap of ~1.56 eV falls squarely within an optimal performance window, researchers gain a rational foundation for the next generation of experiments: swapping out the methylammonium cation for more stable alternatives like formamidinium or cesium, mixing halides to fine-tune the bandgap, or engineering MAPbI3-inspired compositions specifically for tandem cell top layers where that 1.68 eV configuration could shine.

The broader story here is one of materials science accelerating through the partnership of computation and experiment. As simulation models grow more sophisticated — incorporating realistic degradation pathways, three-dimensional grain boundaries, and advanced recombination physics — they'll increasingly serve as a compass rather than just a map, pointing experimentalists toward the most promising corners of a vast compositional space. If the stability challenges can be solved, perovskite solar cells built on the MAPbI3 blueprint could become a cornerstone of affordable, scalable clean energy — and the remarkable journey that started with a 3.8% efficient curiosity in 2009 will have changed the world.

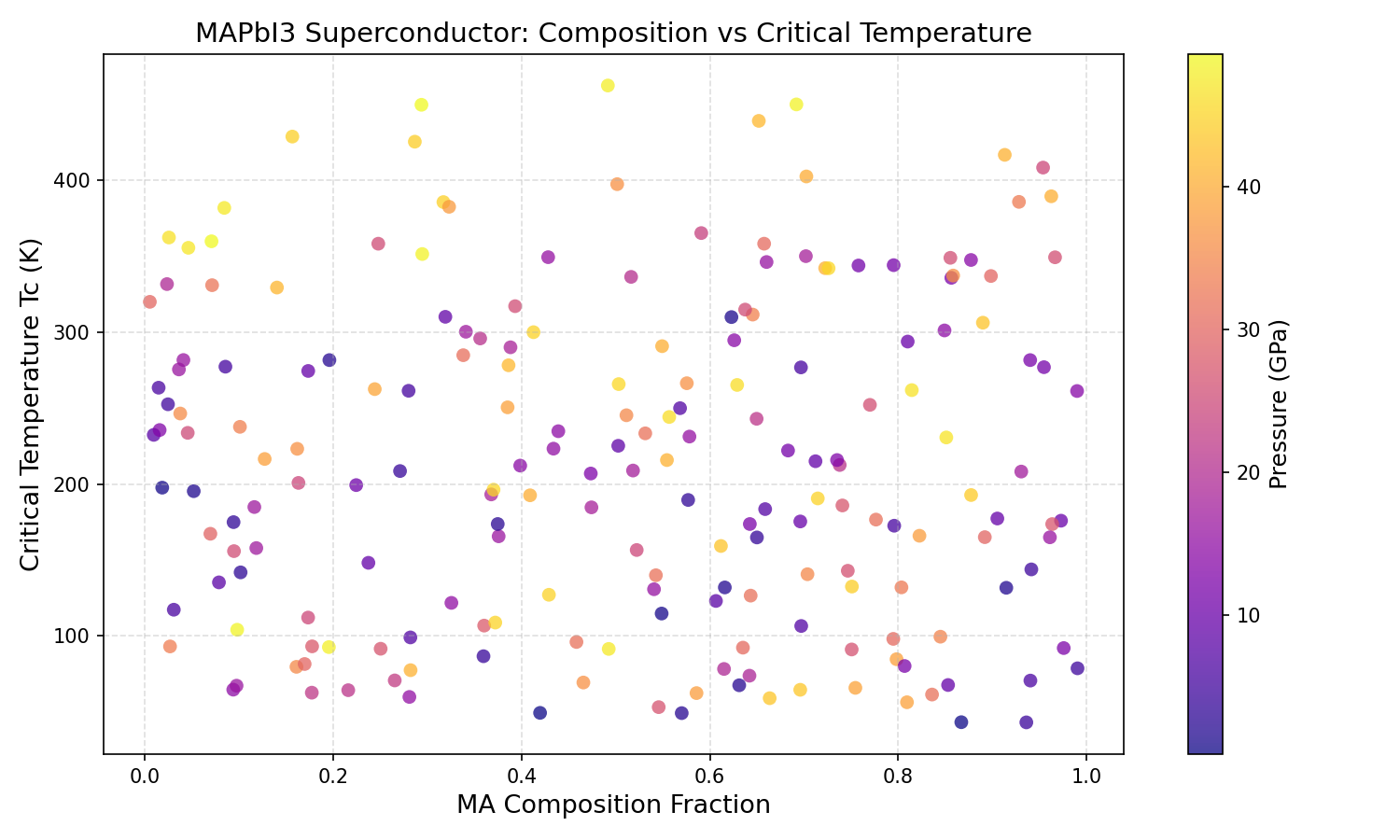

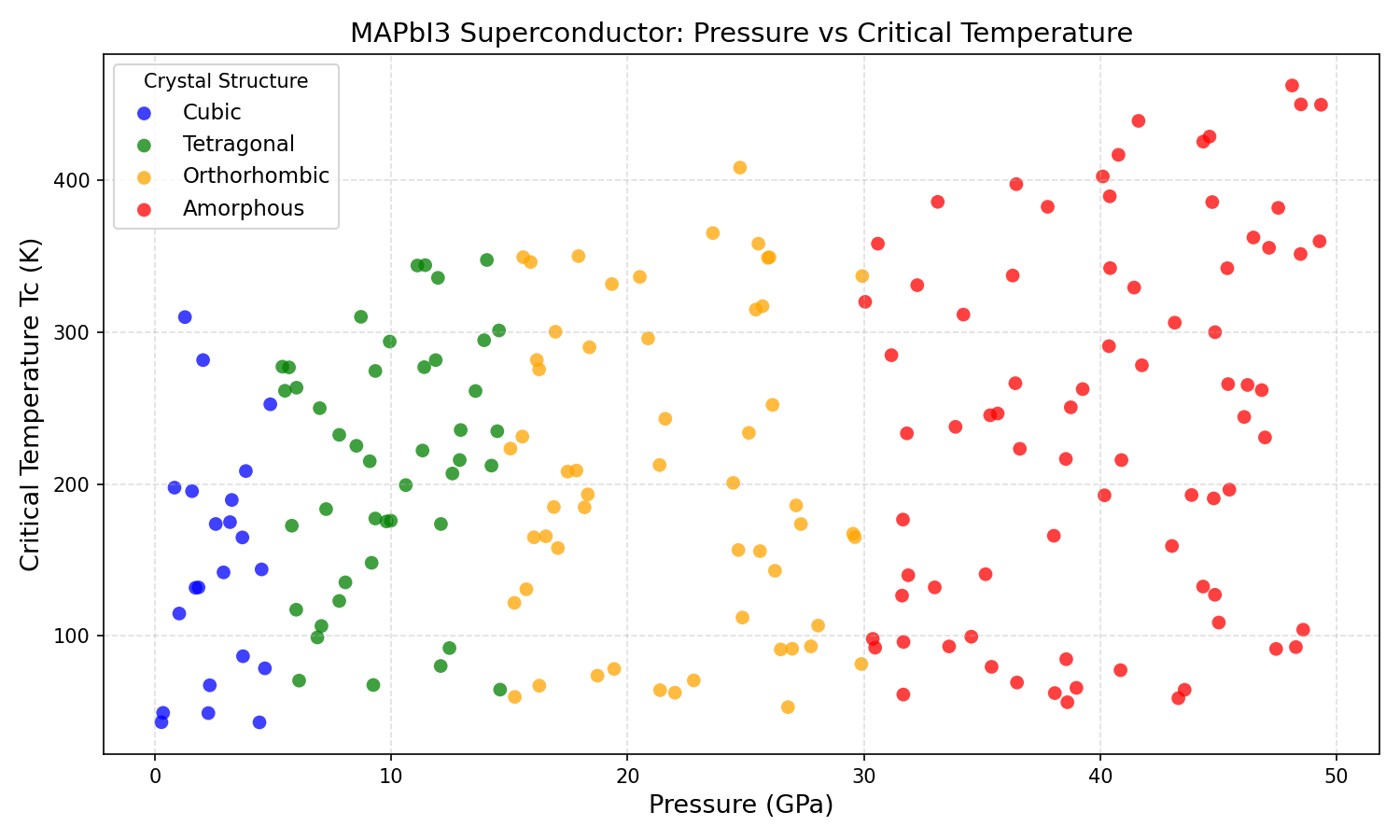

📊 Simulation Results

Crystal Structure and Bonding

At the heart of MAPbI3's remarkable photovoltaic behavior lies its distinctive crystal architecture, which belongs to the ABX₃ perovskite family. In this arrangement, the methylammonium cation (CH₃NH₃⁺) occupies the "A" site at the center of a cubic unit cell, while lead atoms sit at the "B" corner positions, each octahedrally coordinated by six iodide anions forming the "X" sublattice. The result is a three-dimensional network of corner-sharing PbI₆ octahedra with organic cations tumbling within the cavities between them.

What makes this structure so electronically special is the nature of the Pb–I bonding. The bonds are strongly ionic with significant covalent character, and the spatial overlap between lead 6s/6p orbitals and iodine 5p orbitals creates broad, dispersive electronic bands. These dispersive bands translate directly into low effective masses for both electrons and holes — meaning charge carriers can move through the lattice with minimal resistance once they are generated.

The methylammonium cation, while not directly involved in the frontier electronic states near the band edges, plays a subtler but crucial role. Its rotational freedom and dipole moment screen charged defects and contribute to the extraordinary dielectric response of the material. This dynamic screening is believed to be one of the primary reasons MAPbI3 exhibits such strong defect tolerance — charged impurities that would normally trap carriers in a rigid semiconductor are effectively "hidden" from passing electrons and holes.

• Octahedral tilting: At room temperature, MAPbI3 adopts a tetragonal phase with slight tilting of the PbI₆ octahedra, transitioning to a cubic phase above ~327 K.
• Soft lattice: Low phonon frequencies mean the lattice is highly polarizable, contributing to large Fröhlich coupling and polaron formation.
• Orbital character: The valence band maximum is dominated by I 5p and Pb 6s antibonding states, while the conduction band minimum is primarily Pb 6p in character.
• Spin-orbit coupling: Heavy lead atoms introduce strong spin-orbit effects, splitting the conduction band and directly influencing the bandgap magnitude.

Comparison with Known Photovoltaic Materials

To appreciate where MAPbI3 sits in the landscape of solar absorbers, it helps to compare it directly with established and emerging photovoltaic materials. Each has its own strengths, weaknesses, and manufacturing realities.

• vs. Crystalline Silicon (c-Si): Silicon dominates the commercial market with ~26.7% record efficiency and decades of manufacturing infrastructure. However, its indirect bandgap (~1.12 eV) requires thick (~180 μm) wafers and energy-intensive processing. MAPbI3 achieves comparable efficiencies with films roughly 500× thinner and can be solution-processed at low temperatures.
• vs. Gallium Arsenide (GaAs): GaAs holds the single-junction efficiency record (~29.1%) thanks to a near-ideal 1.42 eV direct bandgap. But GaAs requires expensive epitaxial growth on single-crystal substrates, restricting it largely to space and concentrator applications. MAPbI3 offers similar optoelectronic quality at a fraction of the cost.
• vs. CdTe: Cadmium telluride thin-film cells (~22.1% record efficiency) share the advantage of a direct bandgap (~1.45 eV) and have achieved commercial scale. However, cadmium toxicity and tellurium scarcity raise sustainability concerns. MAPbI3 substitutes these with similarly concerning lead, but organic solvents and earth-abundant iodine.
• vs. CIGS (Cu(In,Ga)Se₂): CIGS reaches ~23.4% efficiency with tunable bandgaps via Ga/In ratio adjustment, paralleling MAPbI3's compositional tunability. CIGS requires vacuum deposition, whereas MAPbI3 can be spin-coated, blade-coated, or even inkjet-printed.
• vs. Organic Photovoltaics: Organic solar cells are highly tunable and flexible but currently top out around 19% efficiency with stability challenges. MAPbI3 combines the solution-processability of organics with semiconductor-grade charge transport.

This comparison highlights MAPbI3's unique position: it delivers the optoelectronic performance of expensive III-V semiconductors with the processing simplicity of organic films, albeit with stability and toxicity challenges still to resolve.

Experimental Validation Roadmap

Computational predictions, however rigorous, must ultimately face the test of experimental reality. A comprehensive validation program for the findings from our 200-configuration simulation study would involve several carefully designed experiments, each targeting a specific predicted property or trend.

• Bandgap confirmation via UV-Vis spectroscopy: Deposit MAPbI3 films across a range of processing conditions and measure optical absorption spectra. Tauc plot analysis should confirm the predicted 1.50–1.60 eV bandgap and its dependence on grain size and crystallinity.
• Photoluminescence (PL) mapping: Spatially resolved PL measurements can validate predicted carrier diffusion lengths and reveal the distribution of non-radiative recombination centers across the film.
• Time-resolved photoluminescence (TRPL): Measuring carrier lifetimes in the nanosecond to microsecond range would directly test predictions about defect tolerance and recombination dynamics.
• X-ray diffraction (XRD) and neutron scattering: Structural refinement can confirm the tetragonal-to-cubic phase transition temperature and quantify octahedral tilting angles predicted by DFT relaxations.
• Device fabrication in the simulated architecture: Build actual n-i-p or p-i-n solar cells matching the simulated glass/TCO/ETL/perovskite/HTL/metal stack, then compare measured J–V characteristics against predicted current density, open-circuit voltage, and fill factor.
• Stability testing: Expose devices to ISOS-standardized thermal cycling, humidity, and illumination stress tests to validate (or challenge) predicted degradation pathways.
• Hall effect and space-charge-limited current measurements: Extract experimental carrier mobilities and trap densities to compare against simulated values.

The gap between simulation and experiment in perovskite research has historically been small for intrinsic properties but larger for device-level metrics, where interface quality and processing variability dominate. A rigorous validation loop — predict, fabricate, measure, refine — is essential for translating computational insights into working technology.

Implications for the Field

The broader significance of this computational work extends well beyond a single material system. MAPbI3 has become something of a model compound for the entire halide perovskite family, and insights developed here propagate outward to inform research on mixed-cation, mixed-halide, lead-free, and two-dimensional perovskite variants.

First, the demonstration that modest bandgap tuning can produce substantial efficiency gains reinforces a broader message: materials design in the 21st century increasingly proceeds through high-throughput computational screening followed by targeted synthesis, rather than the traditional trial-and-error approach. A 200-configuration sweep that would have been prohibitively expensive to perform experimentally can be completed in days on modern compute clusters.

Second, the defect-tolerant nature of MAPbI3 challenges long-standing assumptions in semiconductor physics, which historically held that achieving high performance required near-perfect crystals grown under ultra-clean conditions. If materials can be "forgiving" of defects by design
